Solid-State Lithium Battery Packs

Ceramic, not liquid.

Safer power with a ceramic electrolyte — high safety, a wide operating range and fast charging performance.

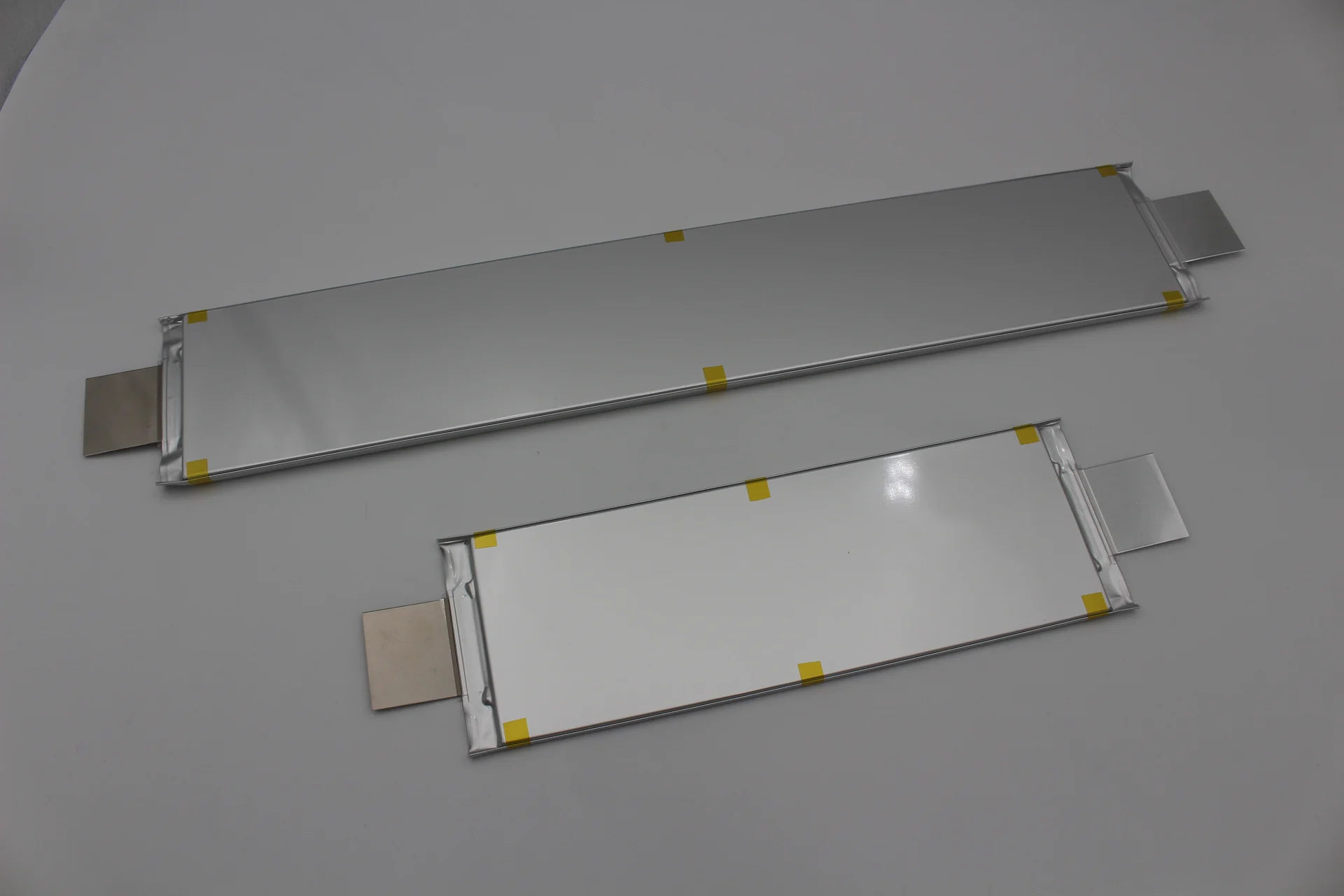

Two constructions

One ceramic core, two body plans.

Both cells are lithium ceramic with an LCO cathode. FLCB bends around your design; PLCB seals the same chemistry flat in a pouch.

FLCB

Flexible Lithium Ceramic Battery

Ultra-thin0.5 mm
Dynamic bending support
Pressure-resistant10⁻¹¹–680 ATM

Thin enough to follow a curve — the ceramic stack keeps its seal while flexing.

PLCB

Pouch Lithium Ceramic Battery

Fast charge80% in 12 min
Charge / discharge−30 °C to 85 °C
High safety & durability

The familiar pouch format, with a ceramic electrolyte where the liquid used to be.

Ceramic electrolyte safety

What the ceramic shrugs off.

0 °C

stable under overcharge and temperatures up to

0 °C

discharge ceiling of the wide-range claim*

0 ATM

FLCB pressure tolerance — from 10⁻¹¹ ATM vacuum

Charge−30 °C to 85 °C

Discharge−40 °C to 115 °C*

-40060115170

Degrees Celsius. The amber mark at 170 is where the flyer says the ceramic is still stable under overcharge.

01: Puncture & bendingNo fire, no leakage — even under puncture or bending damage.
02: Overcharge & heatStable under overcharge and temperatures up to 170 °C.
03: Wide temperatureCharge −30 °C to 85 °C · discharge −40 °C to 115 °C.*
04: Vacuum to pressureOperates in vacuum and high-pressure environments.
05: LCO cathodeHigh energy density and stable output — and it supports slim designs.
06: Fast chargingFast charging to 80% in 12 min.†

Catalogue notes ▾

* The −30 °C to 85 °C charge / −40 °C to 115 °C discharge window is the flyer's brochure-level “Wide Temperature & Pressure Range” claim. The PLCB panel itself prints charge/discharge −30 °C to 85 °C; the −40 °C to 115 °C discharge range is not printed on either product panel.

† Printed as a brochure-level LCO-cathode claim and on the PLCB panel — not on the FLCB panel.

Honest status

Beyond what you see here, the flyer prints no model codes, capacities, voltages, weights or dimensioned drawings — full spec tables are being finalized. Ask the booth team for the latest datasheet.
