Two processes. One deep catalog.
92 rechargeable coin cells — stacked in steel shells or wound and laser-sealed — with custom pin, tab and wire-harness options on every one.
Cell manufacturing process
Stacked, or wound. Pick your physics.
Stacking process · GRP
Stacked electrodes in a steel shell
- Steel shell — wear-resistant, anti-extrusion
- Stacking electrode — low internal resistance, higher capacity
- Covered structure — good airtightness, increased internal utilization
- Enhanced safety with strong sealing & puncture resistance
- Flexible support for custom pin and wire-harness options
556 Wh/L · 5C charge · 2C cont / 20C pulse · 1,000+ cycles (80% retention)
Winding process · LDA / LIR
Wound coils, two ways to seal them
Laser Battery — LDA
Long cycle life with strong sealing performance; 1.5–20% higher capacity vs. conventional types.

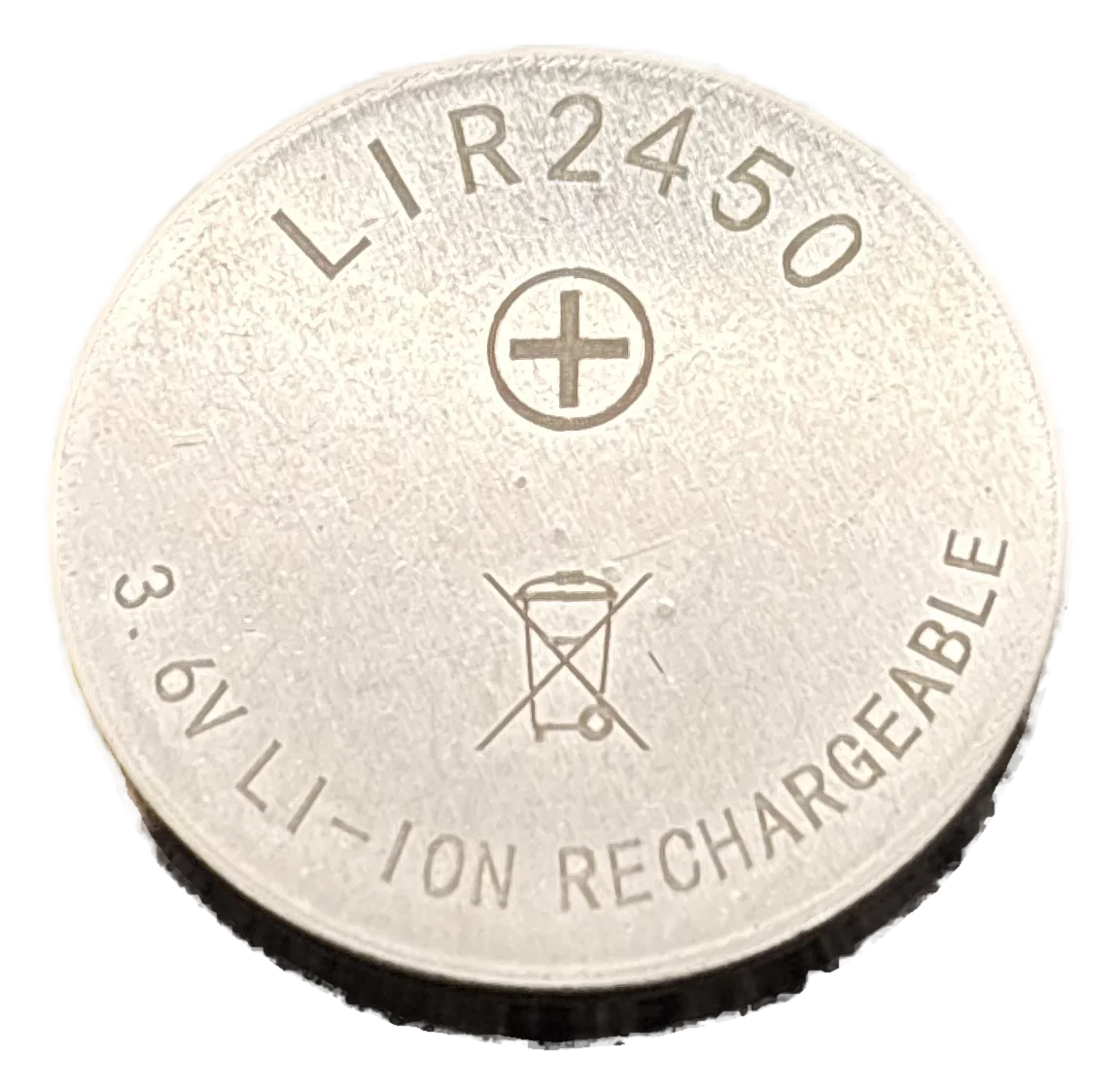

Conventional Battery — LIR
The cost-effective and economical option.
36 LDA models · 31 LIR models · ⌀5.2 mm and up
Detail, under the lens

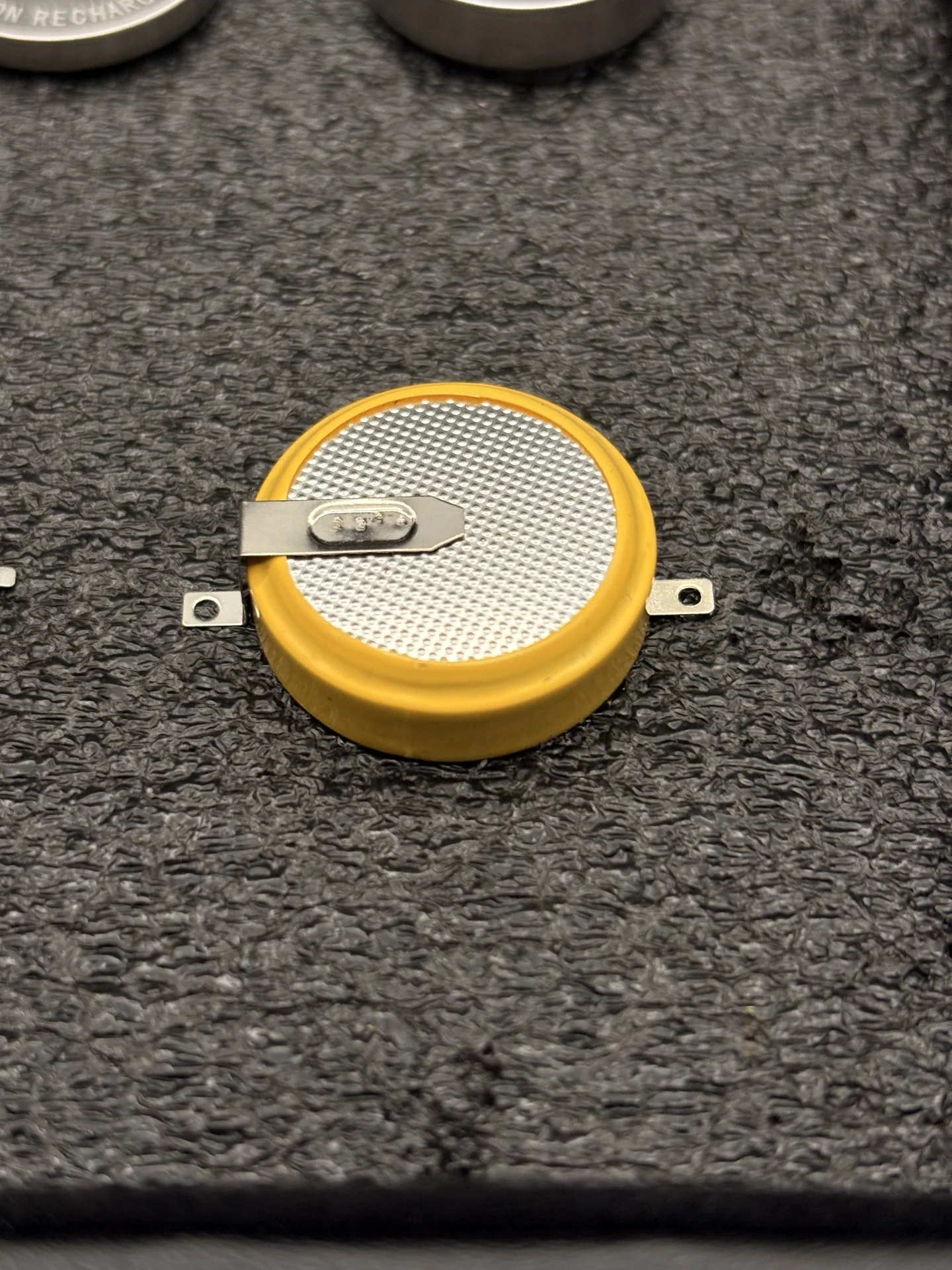

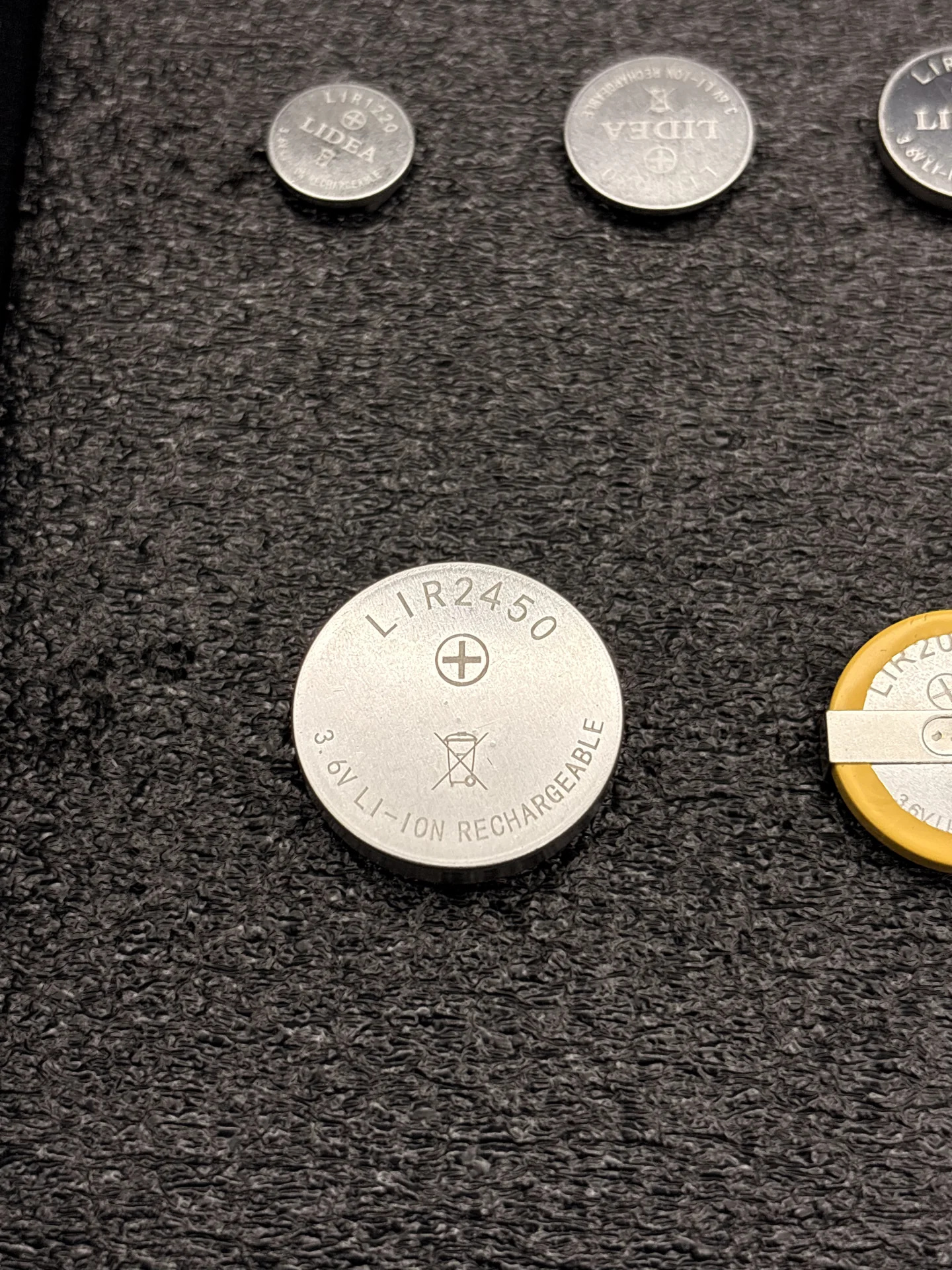

Hover / touch the photos to inspect pin welds and shell finish.
Series explorer
All 92 models, series by series.
Standard 4.2V Series (stacking process) · 12 models
| Model | Nominal V | Capacity | Dimensions |
|---|---|---|---|
| GRP7820R1 | 3.7 V | 6.5 mAh | ⌀ 7.8 mm × H 2.1 mm |
| GRP7854R2 | 3.7 V | 28 mAh | ⌀ 7.8 mm × H 5.6 mm |
| GRP8525R1 | 3.7 V | 9.5 mAh | ⌀ 8.5 mm × H 2.6 mm |
| GRP9525R1 | 3.7 V | 12.3 mAh | ⌀ 9.5 mm × H 2.6 mm |
| GRP1025R1 | 3.7 V | 13 mAh | ⌀ 10 mm × H 2.6 mm |
| GRP1054R2 | 3.7 V | 49 mAh | ⌀ 10 mm × H 5.6 mm |
| GRP1224R1 | 3.7 V | 18 mAh | ⌀ 12 mm × H 2.6 mm |
| GRP1240R1 | 3.7 V | 50 mAh | ⌀ 12 mm × H 4.1 mm |
| GRP1254M1 | 3.7 V | 77 mAh | ⌀ 12 mm × H 5.6 mm |
| GRP1415R1 | 3.7 V | 12.5 mAh | ⌀ 14 mm × H 1.5 mm |
| GRP2032R1 | 3.7 V | 105 mAh | ⌀ 20 mm × H 3.4 mm |
| GRP2440R1 | 3.7 V | 210 mAh | ⌀ 24 mm × H 4.2 mm |
Page 1 of the catalog notes the GRP table lists selected models only — please contact us for more details. The above value might have some tolerance; specifications are subject to change without notice.
† Transcribed as printed
The fine print, kept honest.
We copied the catalog exactly — including its quirks.
+The 6 things a careful engineer would circle
- 01LIR1254 is printed twice in the catalog — once at 65 mAh and once at 70 mAh, with identical voltage and dimensions. Both rows are real and both are shown; the catalog does not distinguish them.
- 02The LiFePO₄ GRP1254D1 and the -50℃ Low-Temp GRP1254RL are both printed with a nominal voltage of 3.9 V. The values are transcribed exactly as printed.
- 03GRP1254RL's low-temperature capability comes from its series label '-50℃ Low-Temp'; no full operating range is printed.
- 04The Ultra High Volt series header is printed as '4.48 Series', without a V unit — kept as printed.
- 05LIR diameters carry a one-sided tolerance as printed (e.g. 6.0-0.2 mm), unlike LDA (±0.1 mm); heights are ±0.2 mm for both. LIR1220's diameter is printed as 12.5-0.2 mm despite the '12' size code.
- 06No per-model weight, energy (Wh), operating-temperature, cycle-count, protection or certification data is printed. The 556 Wh/L, 5C, 2C/20C and 1,000+ cycle figures are page-level claims for the stacking process only.
Which coin cell fits your design?
Ninety-two models is a starting point, not a limit — the GRP table lists selected models only, and pin, tab and wire-harness options are all custom.
