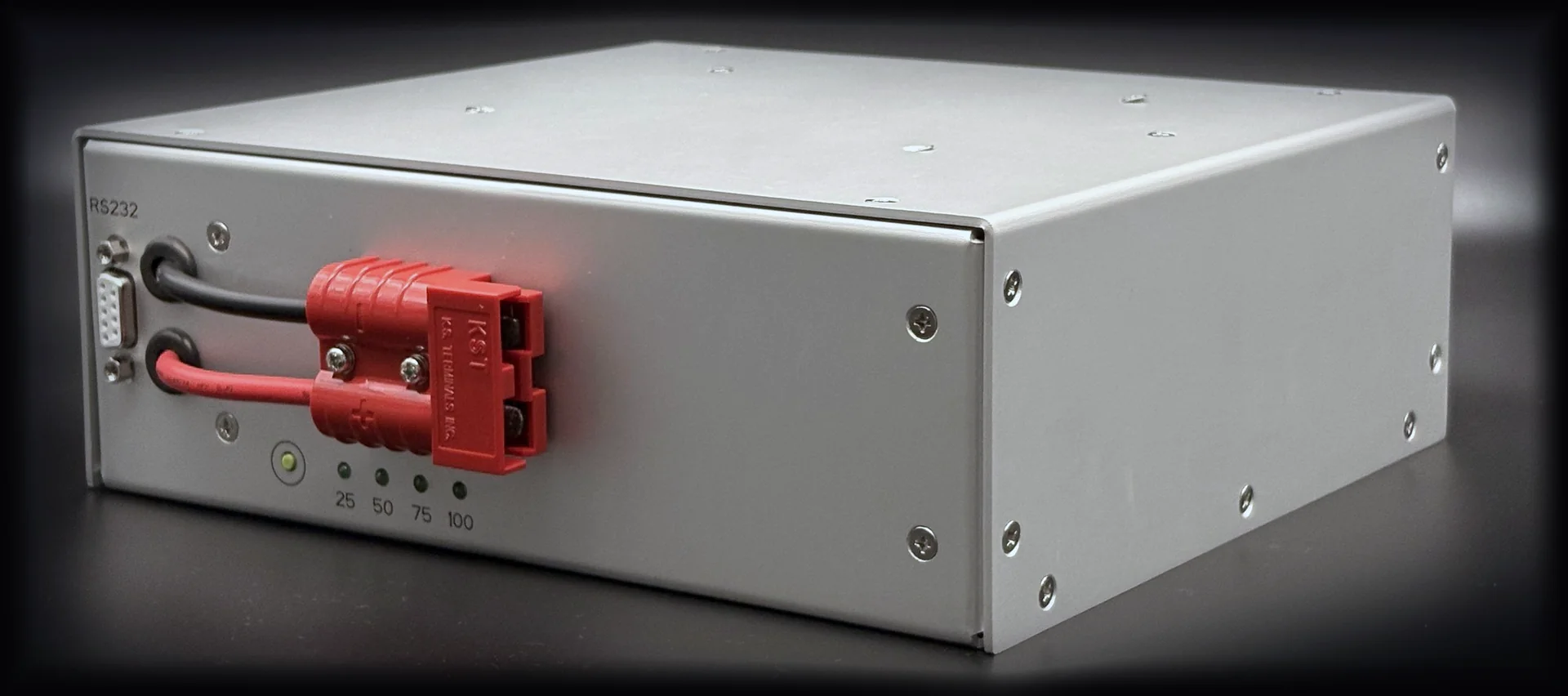

Li-Ion Battery Pack 25.2 V & 50.4 V — BXL7630H / BXLE330H

Power for machines that don't get to stop.

25.2 V and 50.4 V, 680 to 983 Wh by cell variant — with protection that survives its own failure.

Uptime, engineered from the cell up.

Three-stage protection with an independent fail-safe: if the main IC fails, the Smart Fuse still acts.

Main IC: Undervoltage · overcurrent; Main IC shuts down before cell damage; 2 stages each
2nd IC: Overvoltage; 2nd IC blows the fuse, even with the main IC gone; 2 stages
Smart Fuse: Overtemp · short circuit; Smart Fuse stops severe accidents; 2 / 1 stages

Activation conditions fully customisable.

Drag the probe to see which variants stay in their window.

-40-200204060

25 °C

Discharge: all five variants

Charge: all five variants

Measured performance

One footprint. Pick the cell that matches your duty cycle.

Pack energy · Wh

Axis from 600 Wh

-T01B

Available now

-T01C

Available now

-T01D

2026 Q3–Q4

-T01E

2026 Q4–2027 Q1

-T01F

2027 Q1–Q2

Common to both voltages. Same 216 × 225 × 78 mm enclosure throughout.

Every variant, side by side

BXL7630H is 7S6P at 25.2 V, BXLE330H is 14S3P at 50.4 V. Pick a variant to follow it down the table; rows without a model prefix are common to both.

Item	-T01B	-T01C	-T01D	-T01E	-T01F
Availability	Available	Available	2026 Q3–Q4	2026 Q4–2027 Q1	2027 Q1–Q2
Cell brand	Samsung	Molicel	Molicel	Molicel	Molicel
Cell model	INR21700-50E	INR21700-P45B	INR21700-P50B	INR21700-P60C	INR21700-M65A
Pack energy	740 Wh	680 Wh	756 Wh	907 Wh	983 Wh
Capacity 0.2C (25.2 V)	29.4 Ah	27 Ah	30 Ah	36 Ah	39 Ah
Capacity 0.2C (50.4 V)	14.7 Ah	13.5 Ah	15 Ah	18 Ah	19.5 Ah
Max charge current (25.2 V)	12 A	20 A	20 A	30 A	30 A
Max charge current (50.4 V)	8 A	12 A	15 A	18 A	18 A
Max discharge current (25.2 V)	30 A	30 A	30 A	30 A	30 A
Max discharge current (50.4 V)	20 A	30 A	30 A	30 A	30 A
Charge temperature	5 – 40 °C	−10 – 60 °C	−10 – 60 °C	−10 – 60 °C	−10 – 60 °C
Discharge temperature	−10 – 55 °C	−40 – 60 °C	−40 – 60 °C	−40 – 60 °C	−40 – 60 °C
Cycle life ≥80% @1C, 23 °C	500	1,400	1,400	1,400 est.	1,000 est.

Nominal voltage	25.2 V (BXL7630H, 7S6P) · 50.4 V (BXLE330H, 14S3P)
Cell cycle life	Up to 1,400 cycles to ≥80% @1C, 23 °C — 500 to 1,400 by cell variant
Charging voltage	29.4 V · 58.8 V
Discharge end voltage	18 V · 36 V
Dimensions	216 (L, with connector) × 225 (W) × 78 (T) mm · catalogue also lists 200 mm
Weight	4.6 ± 0.3 kg
Case material	Anodised aluminium alloy, UL94 V-0 flame-retardant materials inside
Connector	Anderson-type 2-pin, rated for 50 A
Capacity indicator	Four-level LED: 25 / 50 / 75 / 100 %
Communication	SMBus: cell voltage, current, temperature, SOC, SOH
Battery-In (optional)	Discharge and charge stay off until B/I is connected to system ground
Scalability	Up to 6 packs in parallel
Standards	Designed for IEC 62133-2, PSE and UN38.3
Origin	Cells from Japan, Korea and Taiwan · pack assembly in Taiwan

UL94 V-0 inside · Designed for IEC 62133-2, PSE and UN38.3

Cells from Japan, Korea and Taiwan · assembled in Taiwan

Catalogue notes

Pack-level cycle life depends on pack design and operating conditions and may differ from cell-level specifications.

The catalogue prints the length as “200 / 216(L)” without defining what the 200 mm figure excludes; both are reproduced as printed.

All values are subject to tolerances. Specifications are subject to change without notice.

BXL7630H-T01 / BXLE330H-T01

Beyond this pack

Cell, BMS, enclosure, connector, certification: all open. One partner from prototype to volume.

Cell selection: Samsung / Molicel
BMS behaviour: custom thresholds & Smart Fuse
Mechanical & connector: Anderson 2-pin standard · connector customisation available
Certification support: IEC · PSE · UN38.3 path
Small-lot production: prototype to volume
Proven fields: medical · industrial · AGV · robotics
